Using object properties in the Dashboard Server URL

This article explains how specify an object property in a Dashboard Server URL to return an object page.



Using the value parameter in the Dashboard Server URL

When simply specifying a display name as the value this prioritises more common results such as server objects and groups (in the same way that the Dashboard Server search works). If you want to return an object that is not a server, then you can specify the property and classId you require, see below

  1. Create a URL in the format below, using the object's display name:

    http://SquaredUpServerName/SquaredUpv5/drilldown/scomobject?value=DisplayName

    where DisplayName is the display name of the object whose page you wish to show,

    and where SquaredUpServer is the name of the server where Dashboard Server is installed.

    For example to show the Databases group page:

    http://SquaredUpServer1/SquaredUpv5/drilldown/scomobject?value=databases

    Or to show a particular application:

    http://SquaredUpServer1/SquaredUpv5/drilldown/scomobject?value=Sales App

  2. Paste the URL into a browser and test that it shows the page you required.



Creating a desktop shortcut to a server page in Dashboard Server

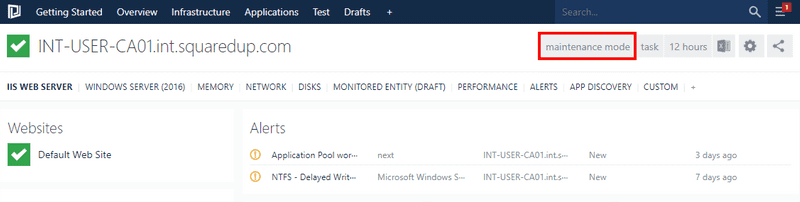

You may like to add a shortcut on a server desktop which will take users to that server's page in Dashboard Server. This can be used to encourage users to put a server into maintenance mode before starting work, because they can use the shortcut to quickly and easily access the right page in Dashboard Server and then click the Maintenance Mode button (see Putting a SCOM object into maintenance mode) in Dashboard Server, as shown below.

  1. Create a URL using the display name of the server in the following format, and test that it works:

    http://SquaredUpServerName/SquaredUpv5/drilldown/scomobject?value=DisplayName

    where DisplayName is the display name of the server whose page you wish to show,

    and where SquaredUpServer is the name of the server where Dashboard Server is installed.

    For example:

    http://SquaredUpServer1/SquaredUpv5/drilldown/scomobject?value=Server2.squaredup.com

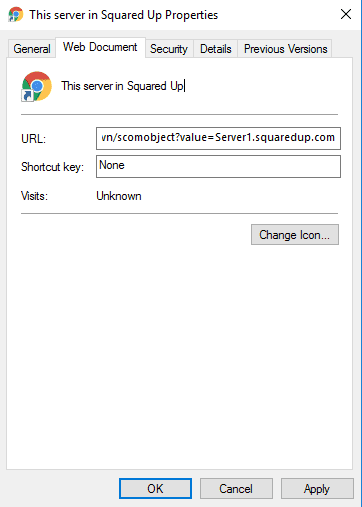

  2. Create a shortcut on the server desktop using this URL and test it.

  3. If you wish, you can use Group Policy to deliver the shortcut and use the %COMPUTERNAME% environment variable in the URL. For example:

    http://SquaredUpServerName/SquaredUpv5/drilldown/scomobject?value=%COMPUTERNAME%&property=NetbiosComputerName&classId=ea99500d-8d52-fc52-b5a5-10dcd1e9d2bd

    For example:

    http://SquaredUpServer1/SquaredUpv5/drilldown/scomobject?value=%COMPUTERNAME%&property=NetbiosComputerName&classId=ea99500d-8d52-fc52-b5a5-10dcd1e9d2bd

For more information about using Group Policy to deploy shortcuts to desktops see Server 2012 Deploy Desktop Shortcuts using Group Policy;



Specifying a property and class ID

If the default page returned is not the correct object, then you should specify the property and the class ID that the property belongs to:

http://SquaredUpServerName/SquaredUpv5/drilldown/scomobject?value=Server1&property=NetbiosComputerName&classId=ea99500d-8d52-fc52-b5a5-10dcd1e9d2bd

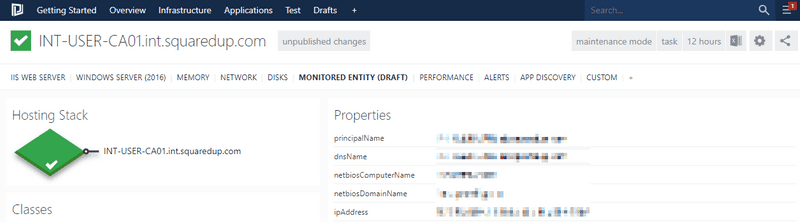

You can view object properties on the Monitored Entity perspective in Dashboard Server, but you will need to change the property name to start in upper case. For example, dnsName as shown on the Dashboard Server Monitored Entity Properties should be DnsName when using in the URL:

http://SquaredUpServerName/SquaredUpv5/drilldown/scomobject?value=Server2.squaredup.com&property=DnsName&classId=ea99500d-8d52-fc52-b5a5-10dcd1e9d2bd

For more information about which properties belong to which class see the System Center Management Pack Catalog.
